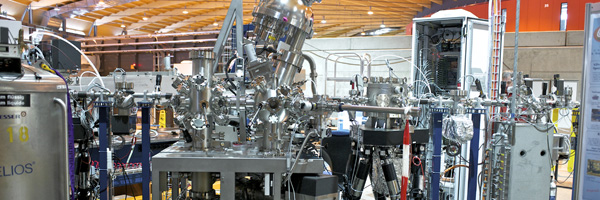

Adress Beamline 02.jpg

ADRESS - X03MA: Advanced Resonant Spectroscopies

The ADvanced RESonant Spectroscopies (ADRESS) beamline installed in the X03MA straight section of SLS is a high-performance soft-X-ray undulator beamline operating in the energy range from 300 eV to 1.6 keV. It hosts two endstations, for Angle-Resolved Photoelectron Emission (ARPES) and Resonant Inelastic X-ray Scattering (RIXS). The scientific activity at the beamline is focused on correlated systems (transition metals and rare earths) and nanostructures.
Energy range 300 - 1600 eV
Polarization circular and 0-180o variable linear polarization
Resolving power E/Δ E (1 keV) up to 33'000
Flux on sample (1 keV) up to 1013 ph/s/0.01%BW/400 mA
End stations Angle-Resolved Photoelectron Spectroscopy (ARPES); Resonant Inelastic X-ray Scattering (RIXS)
Spot size on sample 10 x 74 µm2 (ARPES); 4 x 52 µm2 (RIXS)
A detailed description of the ADRESS beamline can be found in J. Synchrotron Rad. 17 (2010) 631 and one of the recent presentations.
