Thin Films

Thin films are a very important field of research and application. Often, the surface of thin films determines many properties such as beauty. But beauty is only skin deep, and it is only the skin you see (15th century proverb). Therefore thin films presents often the amount of material necessary to accomplish something. Thin-film technology is one of the oldest arts and at the same time one of the newest sciences dating back to the metal ages of antiquity.

The deposition techniques are usually divided into physical (e.g. PLD) and chemical (e.g. CVD) methods. Thin films are prepared from inorganic, organic or even biological materials and are nowadays applied as protective coatings, decoration, as structural and electronic materials and in optics (e.g. mirrors), etc., while the most important polymeric materials are photoresists (deposited by spincoating). Recently, the deposition of sensitive organic/polymeric (multi-)layers and biological samples became also an important research topic. Laser ablation is also used to create nano-particles in liquid by ablating from a metal target. Examples of metal ablation in liquid (and others) are shown on the web pages of Prof. Barcikowski's Group at the University of Duisburg.

Pulsed Laser Deposition (PLD)

Pulsed Laser deposition is a very suitable technique compared to other deposition methods for the controlled deposition of complex multielemental thin films with a desired stoichiometry. For PLD a high power laser is used as an external energy source that interacts with a target and vaporizes this material. The evaporated material forms a plasma plume and is deposited on a heated substrate. The deposited material can range from nano-particles to thin films (amorphous - polycrystalline - single crystalline) that can contain stress, which may vary the film properties. How such an ablation process looks like is shown in the following image and video in one of our PLD chambers. Here, the ionic conductor YSZ is ablated using a 193nm excimer laser onto a heater. Normally, the sintered ceramic (cylindrical target) shows a white colour. Due to the intens interaction with the UV laser light, oxygen is removed and YSZ turns black. This is called incubation and common for quite a number of other ceramics such as SrTiO3 or MgO during ablation.

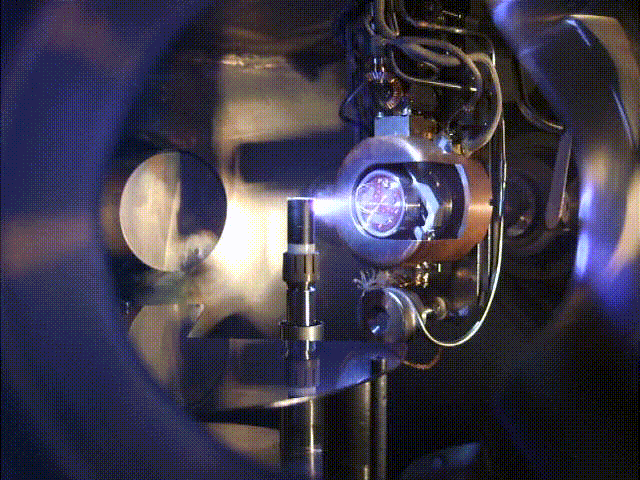

Short video sequence of a YSZ ablation in vacuum using an Ar/F2 laser laser with a wavelength of 193nm.

(a) Classical PLD, (b) RF Plasma assisted PLD and (c) Pulsed Reactive Crossed-Beam Laser Ablation (PRCLA)

There are at least three different realizations of PLD in use today. Most common is the "classical" PLD set-up (a). The other two variations, RF Plasma assisted PLD (b) and Pulsed Reactive Crossed-Beam Laser Ablation (PRCLA) (c), provide more options to do in situ plasma chemistry. All three techniques are shown schematically and with an image next.

Thickness vs. deposition angle for La0.6Ca0.6MnO3 deposited in vacuum, 1x10-2 and 1x10-1 Ar background pressure

The pressure to deposit thin films by PLD ranges from vacuum to almost 1 mbar. This is much larger than any other PVD or CVD deposition technique and provids a lot of flexibility for the deposition process. The main purpose to add a background gas is to control the kinetic energy of the plasma species. At a low pressure (<10-2mbar), where the mean free path is much longer than the typical substrate-target distance, the kinetic energy can be as large as several 100eV. At 0.1mbar, the kinetic energies of plasma speces is slowed down to a few and up to some 10eV as a result of the formation of a shock-wave at the front of the expanding plasma plume. The expantion of the plasma species is very directional, in particular at a lower pressure and has a pronounced angular dependence. This is shown in the next image where the thickness and composition of ablated La0.6Ca0.6MnO3 has been measured vs. deposition angle using Rutherford back scattering at the ion beam physics group, ETH Zurich. The deposition was done in vacuum, 1x10-2 and 1x10-1 Ar background pressure. More details can be found here.


The most common background gas added for oxide ablation is O2 to improve the oxygen content in a film. With increasing pressure, the number of scattering events during the expansion of the plasma increases. Therefore the intensity of the visible light from the expanding plume increases due to an increase of re-excitations in the plamsa. This increase in luminosity due to an increase in scattering events is an indirect measure of an increase in chemical activity in the plasma. This is shown in the next image. Other background gases used for ablation are N2O or NO2 to provede a more reactive atmosphere. To prepare nitrides or oxinitrids, N2 or NH3 have also been used.

Optical images of the expanding plasma plume at differen O2 background pressures. The ablated material is LuMnO3.

RF Plasma assisted PLD

In RF plasma beam assisted PLD, a plasma beam is directed toward the substrate surface in order to supply reactive species, such as atomic/diatomic excited oxygen during film growth. This can be utilized to introduce and control the amount of light elements in thin films.

Pulsed Reactive Crossed-Beam Laser Ablation

In Pulsed Reactive Crossed-Beam Laser Ablation (PRCLA) a synchronized gas pulse crosses the ablation plume close to its origin, increasing the gas phase interaction (see larger plasma plume in the picture) and the probability of reactive scattering. This allows the resulting species to propagate freely away from the localized scattering region. PRCLA is especially suited for the deposition of oxides, nitrides and carbides where the gas pulse is utilized to introduce the light elements into the films. The gas pulse pressure and background pressure even allow to control the oxygen content in certain perovskite films.

Metal-Organic Chemical Vapor Deposition (MOCVD)


Metal-Organic Chemical Vapor Deposition (MOCVD) belongs to the class of chemical thin film deposition methods and is quite similar to other techniques, such as spray pyrolysis, where the vaporization method and the precursors may vary. It is in principle a simple "non-vacuum" technique, which allows the fast deposition of various film materials without using a laser. The films are normally polycrystalline and can be quite smooth.

Laser-Induced Forward Transfer (LIFT)
(in collaboration with the Laboratory for Functional Polymers at EMPA)

LIFT belongs to the class of deposition methods, which utilize lasers to transfer a thin material layer with a resolution in the micron range from a target to a receiver material. The quality of the thin layers may be superior to other deposition techniques. Many different modification of this approach exist which vary in the utilized laser, additional materials, or the conditions, e.g. vacuum. Examples of these techniques are:

  • LAT = laser ablation transfer
  • LITI = laser-induced thermal imaging
  • MAPLE = matrix-assisted pulsed laser evaporation
  • MAPLE DW = matrix-assisted pulsed laser evaporation-direct write
  • LMI = Laser molecular implantation

All these methods have the advantage that they are "solvent" free deposition techniques, which allow to deposit multilayers without the need to identify suitable solvent systems or to obtain a polymer that can be evaporated thermally. With the exception of MAPLE, all other LIFT approaches allow a deposition with a "high" lateral resolution. More information to LIFT and respective applications can be found here.

LIFT can be used to transfer sensitive materials with a UV laser, by applying a Dynamic Release Layer (DRL, see design of polymers and applications (polymers)), which absorbs the laser light at the irradiation wavelength and produces enough energy to accelerate the transfer material.
The materials are often sensitive to moisture and oxygen. It is therefore necessary to perform the transfer process in vacuum or inert gas atmosphere as realized in a special chamber for LIFT.

Spin Coating

Spin coating is a cheap and fast method to produce homogeneous layers. An excess amount of the solvent is placed on the substrate, which is then rotated at high speed in order to spread the fluid by centrifugal force. The film thickness can be adjusted by varying the rotation speed, the rotation time, and the concentration of the used solution. The disadvantage of this method is that it is limited by the solvent and that no lateral resolution is possible.

Epitaxy and Strain in Thin Films

To improve, modify or change material properties, there are a number of ways to accomplish this. The most common route is chemical substitution. Without changing the composition, physical properties can be significantly altered by changing the microstructure like grain size or porosity. Likewise physical properties can be changed through lattice distortions (strain). Applying strain to a crystal changes the bond lengths and subsequently the electron density or the orbital overlap. As a result, physicochemical characteristics can be strongly influenced. Material properties may be enhanced or inhibited or new functionalities emerge. Strain affects materials in many different ways like the electronic bandgap, the behaviour of correlated systems, thermal conductivity, multiferroicity, catalytic properties or charge transport. The tuning of material properties via lattice distortions is referred to as strain engineering.

Compressing a solid material will change its size and dimension and the magnitude of the size modification depends on how strong the material is being pressed. The sign of the strain is defined as positive for tensile and negative for compressive strain and is described by Hook's law σ=εE with σ being the stress applied to a material (how strong you press), ε is the strain (i.e. change of the size of the material), and E is called "elasticity" or elastic modulus of the material. For a large elastic modulus E the material is rigid and difficult to distort, for small E a distortion is simple to accomplish.

Strain in an epitaxial film develops due to the mismatch of the lattice constants between film (a0) and substrate (as) and is expressed as f = (as - a0)/a0. When a film grows epitaxially on a substrate, the material tries to be smoothly connected to the substrate and to avoid forming dangling bonds. As a consequence, the film initially tends to grow with its in-plane lattice parameters fixed to those of the substrate. In a thin film the strain/stress is simultaneously applied along two in-plane directions (biaxial strain) while the third (out-of-plane) is free to adapt. Perfect coupling between the film and substrate in-plane lattice is called pseudomorphic growth and the interface is coherent. In the case of a pseudomorphic growth, a = as and f = ε. Due to imperfections in the crystal lattice, the interface, or due to the surface morphology of the film, the in-plane lattice constant of the film can also only partially adapt to the substrate, or even be fully relaxed (|ε| < |f|). The strain will relax as a function of the film thickness through the introduction of crystalline defects that reduces the elastic energy in the film. A lattice mismatch |f| ≤ 1% is considered to be "small" and may be expected to be fully accommodated. In perovskites, larger mismatch values can be accommodated by deviations e.g. by tilting of the oxygen octahedra. The largest lattice mismatch value reported so far to be accommodated by strain is 6.6 % for BiFeO3 grown on (110) YAlO3 (R.J. Zeches et al., Science 326 , 977 (2009)).

Measurements by K. Shimamoto
The magnitude of strain applied to a thin film can be evaluated ex-situ by x-ray diffraction (XRD) measurements. Combining conventional θ-2θ scans and reciprocal space maps, lattice parameters of the film can be investigated. By comparing the obtained lattice parameters to those of original material, one can investigate how much the unit cell of the material has changed by epitaxial growth. This is shown in the figure on the left hand side where the (130) reflection of orthorhombic (010) oriented HoMnO3 thin films with different thicknesses has been structurally characterized. The very thin films (≤ 20 nm) are highly strained and share the same lattice paramter like the substrate. Thicker films start to relax towards the expected lattice parameter of o-HoMnO3 (white circle).

To accomplish the controlled tuning of material properties via lattice distortions (strain engineering), there are in the mean time quite a range of different single crystalline substrates commercially available covering the lattice parameter range between 3.68 (LuAlO3) and 4.2 Å (MgO). This is shown in the next image.

Adopted from D. G. Schlom et al., MRS Bulletin 39, 118 (2014).
Evaluation of the in-plane lattice parameter by RHEED with S the distance between the streaks and L the sample-to-screen distance. The in-plane lattice spacing is than calculated as qin-plane = (h2+k2)1/2 λ L/S.
To evaluate strain, the distance between diffraction spots or streaks is measured. This distance is proportional to the in-plane reciprocal lattice parameter qin-plane (see Figure) and can be evaluated as a function of layer thickness. The resolution of the RHEED diffraction pattern depends on the background pressure used during growth. The resolution is sufficient at low deposition pressures (10-5 mbar or smaller), but the diffraction peaks starting to broaden with increasing pressure, which reduces the resolution considerably. For PLD with a typical deposition pressure around 10-1 mbar, a better alternative is a substrate curvature based technique.
Curvature-based stress measurement. An epitaxially strained film (yellow) exerts a force on the substrate surface (green) thereby bending the substrate. The radius of curvature and the lattice distortion in the film is exaggerated to emphasis the strain effect. Images by Aline Fluri.
Working principle of MOSS. (a) shows a 10x10 mm2 substrate mounted free to bend. A 3x3 array of laser spots is visible on the surface. A laser beam is split into parallel beams with an etalon (b); for obtaining an n x m array, two etalons are used. For the sake of simplicity only two beams are shown here. The laser beams are reflected from the substrate surface toward a CCD camera that records their relative position and monitors the change of the relative distance among the laser spots, the distance between sample and CCD is L, the angle of incidence alpha. Depending on the radius of curvature rho, D becomes smaller (tensile, (b)) or larger (compressive, (c)) during the film growth.

A curvature based strain sensing technique is independent of the deposition pressure and probes the bending of the substrate as a consequence of compressive or tensile strain in a film. Tensile strain leads to a contraction (positive curvature) and compressive strain to an expantion (negative curvature). This is indicated in the figure.

The multi-beam optical stress sensor (MOSS) uses an array of parallel laser beams to map the changes in curvature of a surface in two dimensions. In the figure, the working principle of the MOSS is illustrated. (a) A 3x3 array of laser spots is projected onto the surface of a substrate created by two etalons. The 10x10 mm2 substrate is mounted free to allow bending. (b) For simplicity only two beams illustrate the working principle. The laser beams are reflected from the substrate surface toward a CCD camera. The relative position is recorded and the movement of the laser spots measured during growth. The distance between sample and CCD is L, the angle of incidence α. Depending on the radius of curvature ρ, D becomes smaller (tensile, (b)) or larger (compressive, (c)) during the film growth. Images/Figures by Dieter Stender and Aline Fluri.

The figure shows a MOSS measurement during the deposition of 3YSZ on (001) silicon at room temperature along the horizontal and vertical direction. With increasing thickness (time) the differential spacing of the spots on the surface changes linearely, which corresponds to a linear change in curvature with increasing thickness. Graphs by Dieter Stender.
