The cyclotron facility contains a cascade of three accelerators that delivers a proton beam of 590 MeV energy at a current up to 2 mA (1.2 MW). The proton beam is pre-accelerated in a Cockcroft-Walton electrostatic column to an energy of 870 keV and this is increased to 72 MeV in the 4-sector Injector 2 cyclotron. Final acceleration of the main beam to 590 MeV occurs in the large 8-sector Ring Cyclotron, from which the beam is transported to the experimental hall.

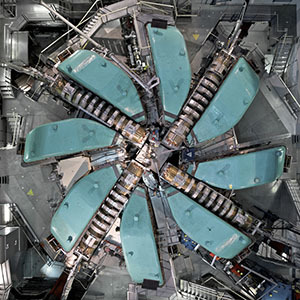

The large Proton Ring Accelerator
Secondary beam lines at PSI
PSI provides beam time for particle physics and other experiments. Its unique specialty is very high intensity pion and muon beams of momenta up to a few hundred MeV/c. These secondary beam lines (picture) are maintained jointly by the Laboratory for Particle Physics and the Division of Large Research Facilities.

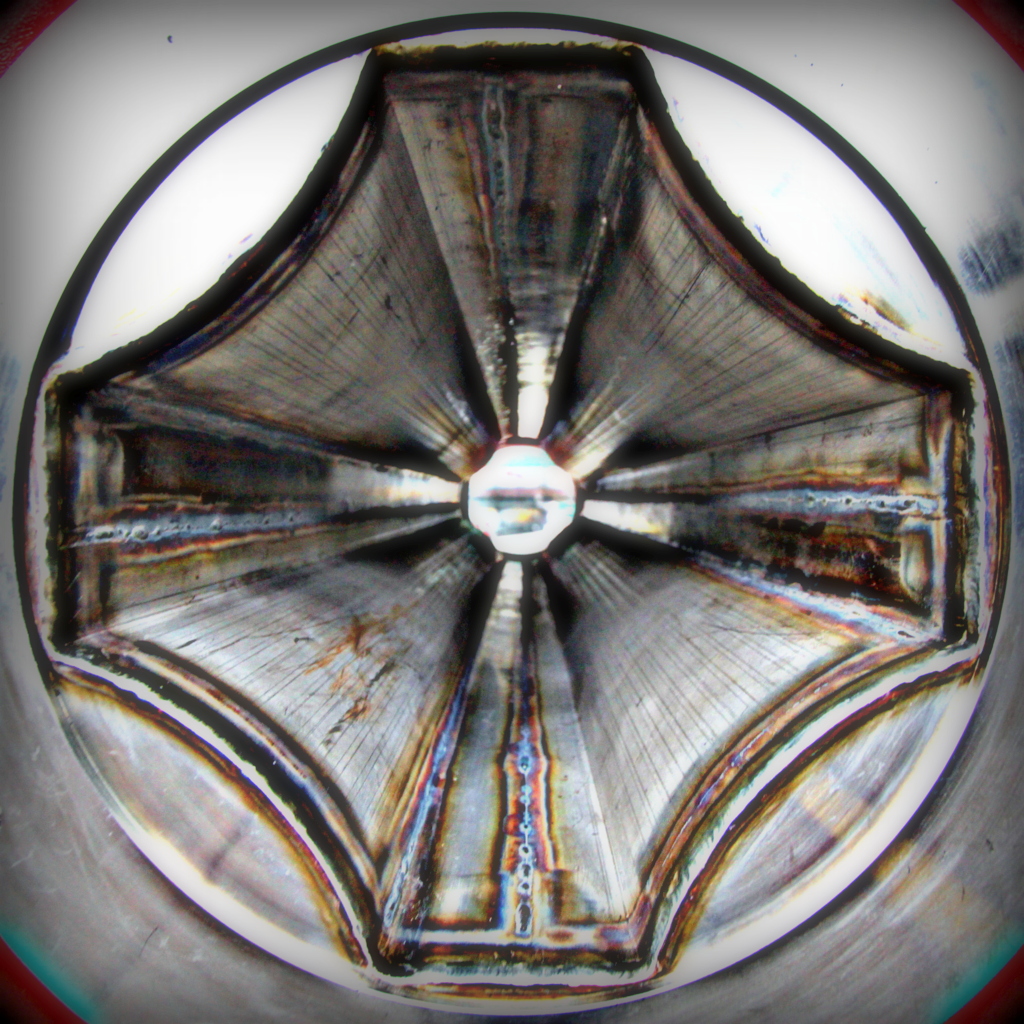

View of the PSI experimental hall with the secondary beam lines
Secondary beam line schedules
Ultracold Neutron Source (UCN)
A powerful source for ultracold neutrons is operating at the Paul Scherrer Institut (PSI) in Switzerland. It is serving three beamports and currently delivering about 15 Million UCN every 330s in regular operation.

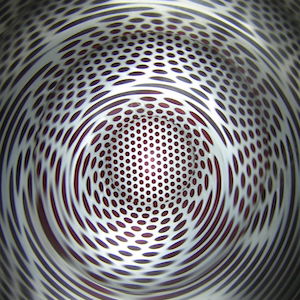

Inside view of a UCN guide
Information on UCN beamlines
More on the UCN Source Project ...
Proton Irradiation Facility (PIF)
Under the contract between European Space Agency (ESA) and the Paul Scherrer Institute (PSI) the Proton Irradiation Facility (PIF) was constructed for testing of spacecraft components. The facility is designed in a user friendly manner and is commonly available. It enables generating of realistic proton spectra encountered at any potential orbit in space. PIF is a member of the ESA supported European Component Irradiation Facilities (ECIF).

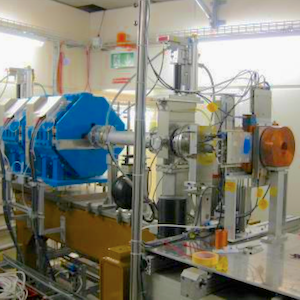

PIF area downstream view
Read more ...
