MicroXAS - Station1


Figure 1: micro-Endstation
Figure 1: micro-Endstation
Figure 2: micro-Endstation
Figure 2: micro-Endstation


Microfocusing (KB-Box)

80mm after the KB Box (fine-focusing of the x-ray-beam) there is the focal spot.
80mm after the KB Box (fine-focusing of the x-ray-beam) there is the focal spot.
Fluorescence scan of 20um thick Cu-structure (5um solid, 7,5um hole). 1um reslution.: 100x100um (~16min)
Fluorescence scan of 20um thick Cu-structure (5um solid, 7,5um hole). 1um reslution.: 100x100um (~16min)
Fluorescence scan of 20um thick Cu-structure (5um solid, 7,5um hole). 1um reslution.:50x50um (~8min)
Fluorescence scan of 20um thick Cu-structure (5um solid, 7,5um hole). 1um reslution.:50x50um (~8min)

Sample Manipulator and Heavy Sample Manipulator

They consist of a base module, Z-rotation-X-Y. On top several modules can be attached.

Following we provide, pictures, models and drawings. Some models are in edrawings format, which you can download and open on your Windows PC, without any additional software! You even can measure distances.

We also can provide 3D CAD models of nearly the whole end-station if this is needed for you to fit it your experimental setup.

Sample Manipulator

There is 154mm from the top of the basis-module to the beam.

If you like to mount your own sample holder, this is possible, consider the interface. Scan-Y (vertical axis)
Please be aware the the vertical axis can only carray <= 5kg load. (centered, without too much momentum)

Download eDrawings model (Windows only)

Sample Manipulator
Sample Manipulator
Drawing / Model
Drawing / Model

Heavy Sample Manipulator

Here are 210mm from the top of the basis-module to the beam.

Download eDrawings model (Windows only)

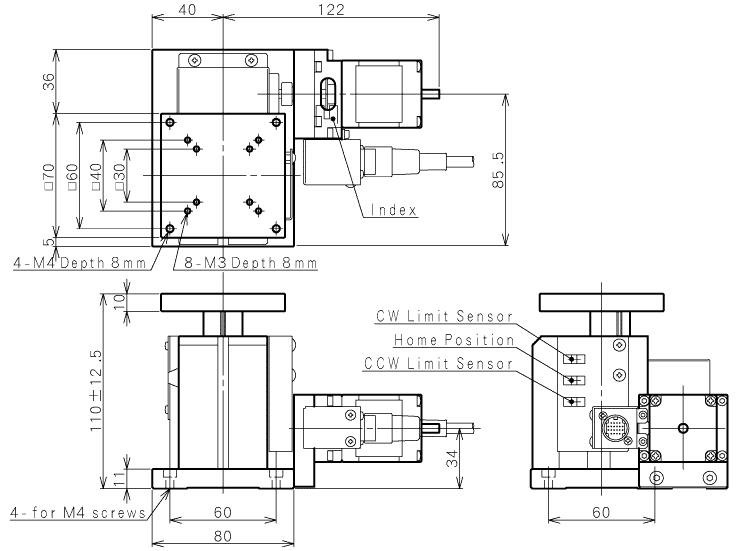

If you like to mount your own sample holder, this is possible, consider this interface: Scan-Y (vertical axis) can take up to 10kg load. Download2D drawing. (ZA13A-W2 earlier ZA13-03)

Heavy Sample Manipulator
Heavy Sample Manipulator
Drawing
Drawing

Sample Manipulator Top Modules

Sample Manipulator Top Modules

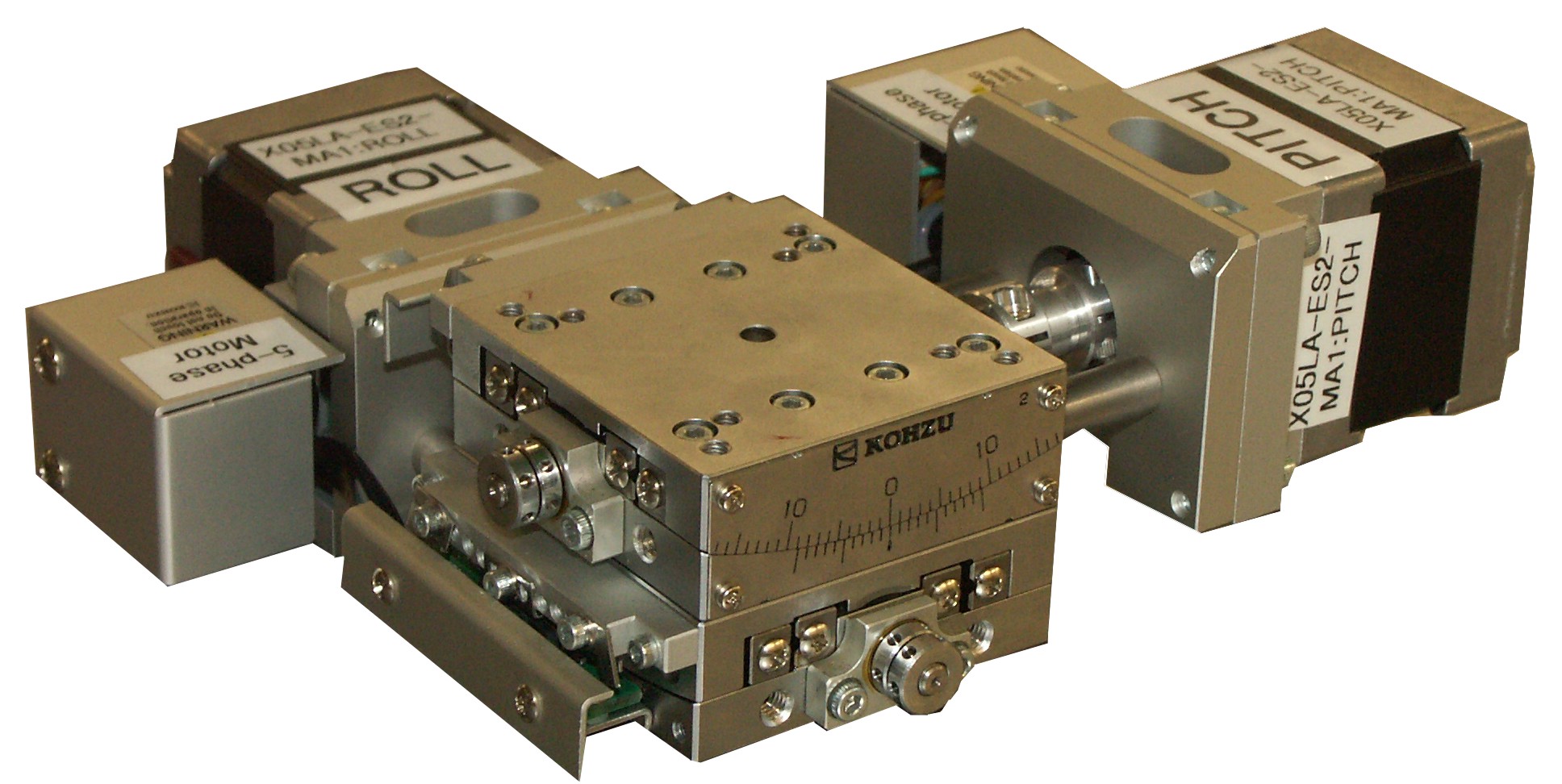

Swivel Heavy Swivel Rotation

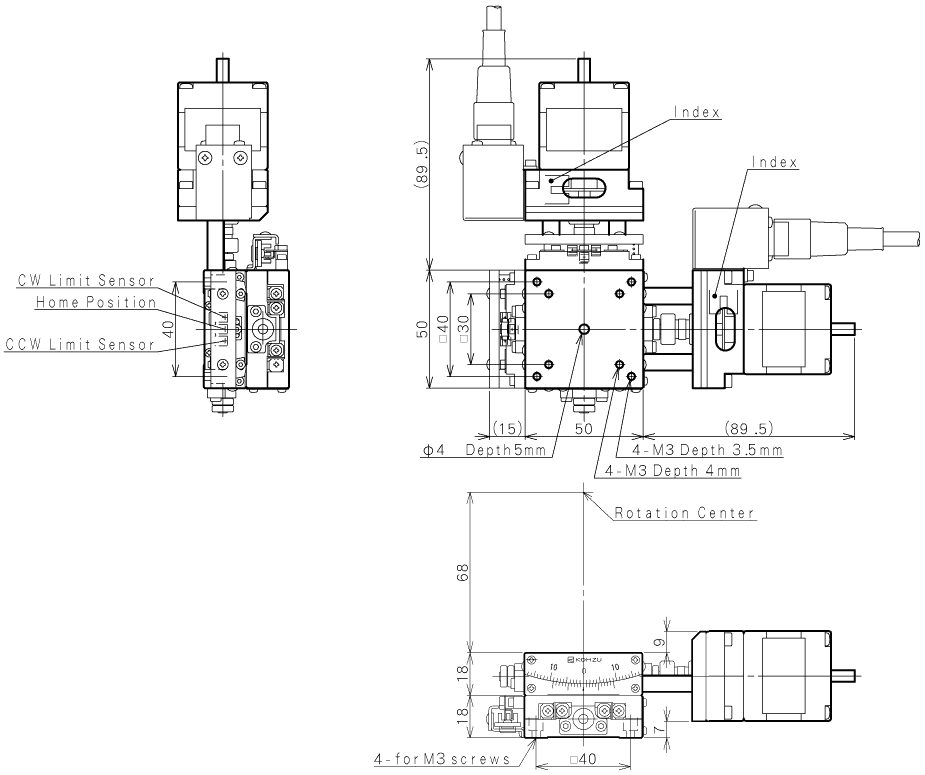

Kohzu SA05B-RL
View 2D Drawing

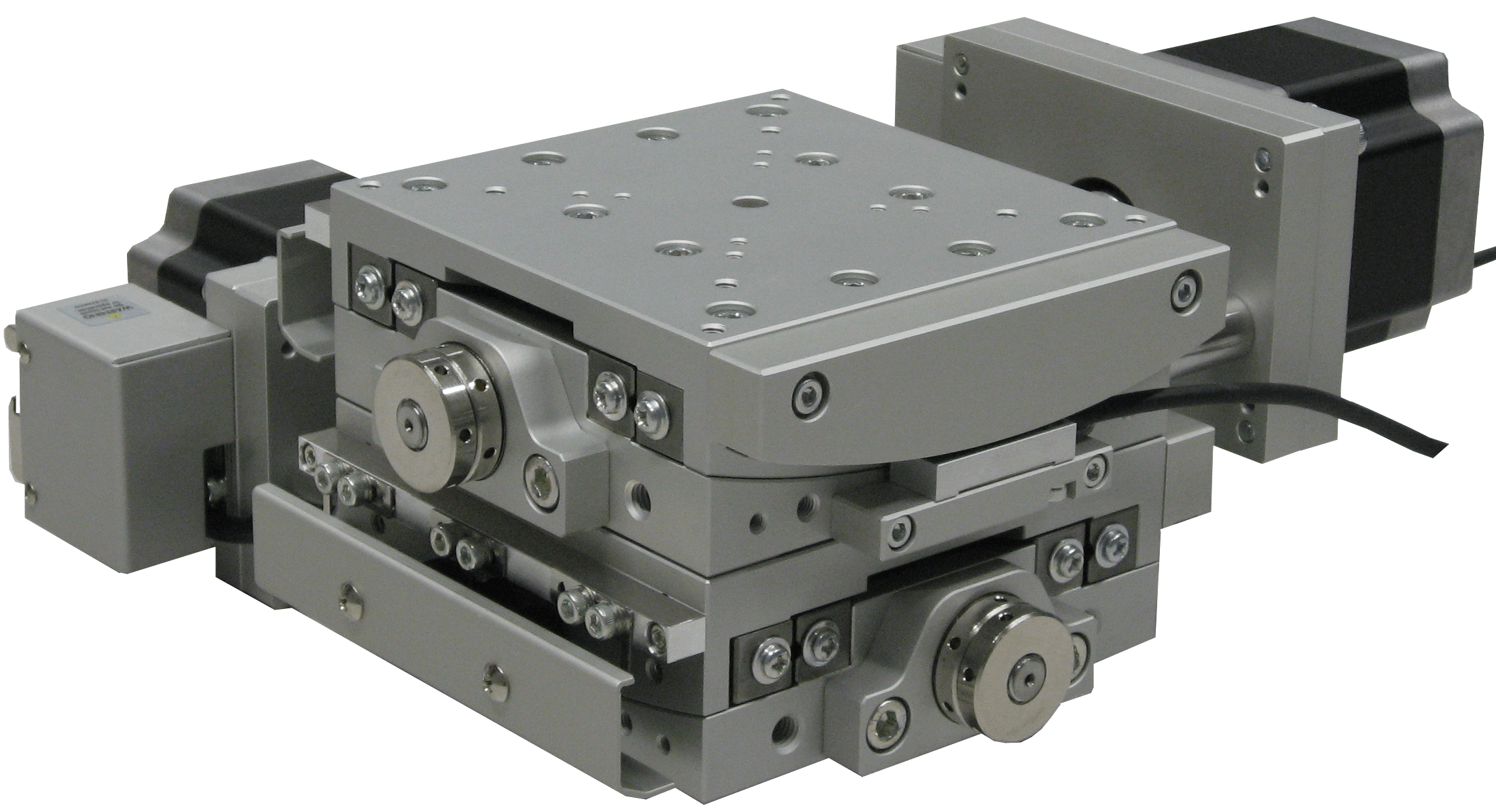

SA10A-RL free.gif

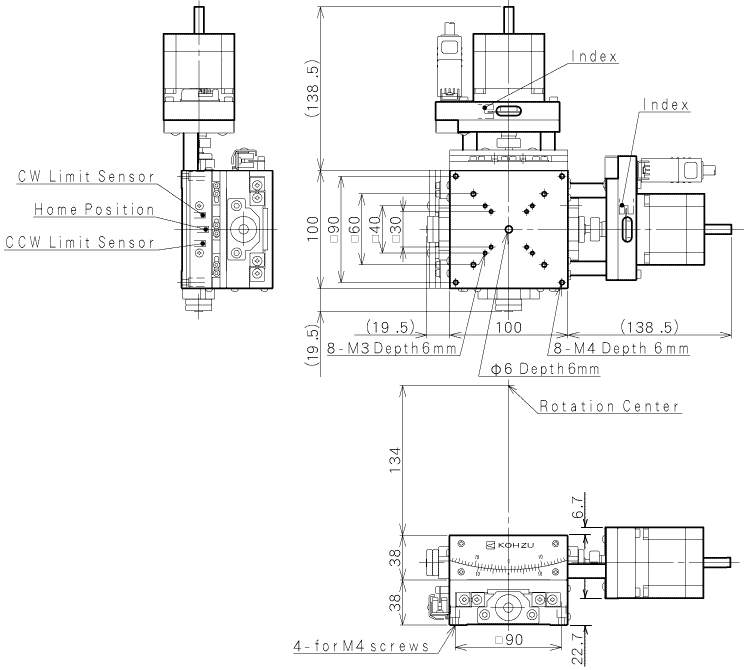

Kohzu SA10A-RL including encoders.
View 2D Drawing

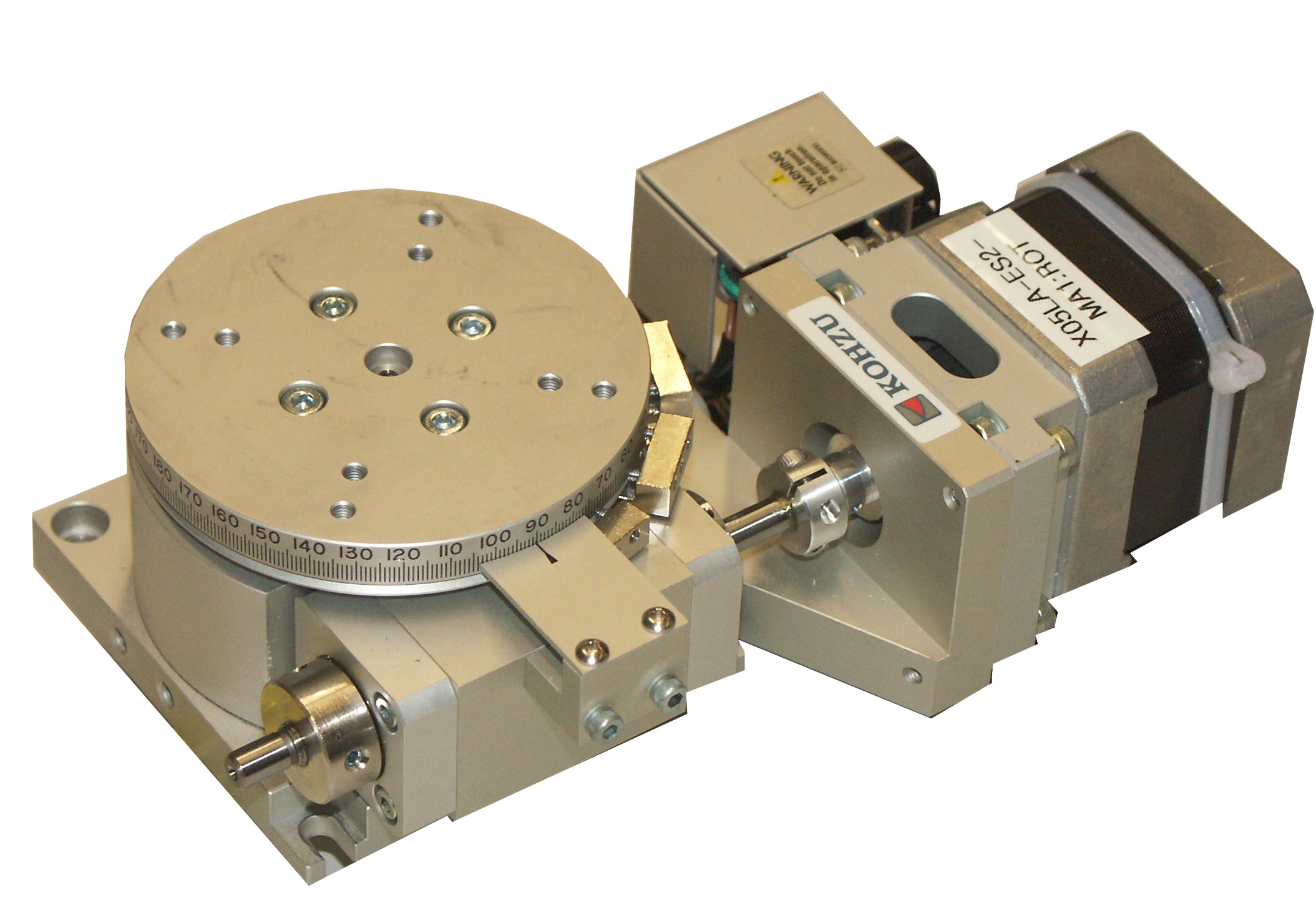

RA07A-W freigestellt.jpg
Kohzu RA07A-W
View 2D Drawing
XY-table Adapter 45-Deg XY-table
XA07A Picomotor driven and Encoder.jpg
Kohzu YM07A-S1, modified with piezomotors.
Resolution 30nm
Encoders 50nm
Motion-Range 1-5mm

can be mounted on the rotation stage.
View 2D Drawing

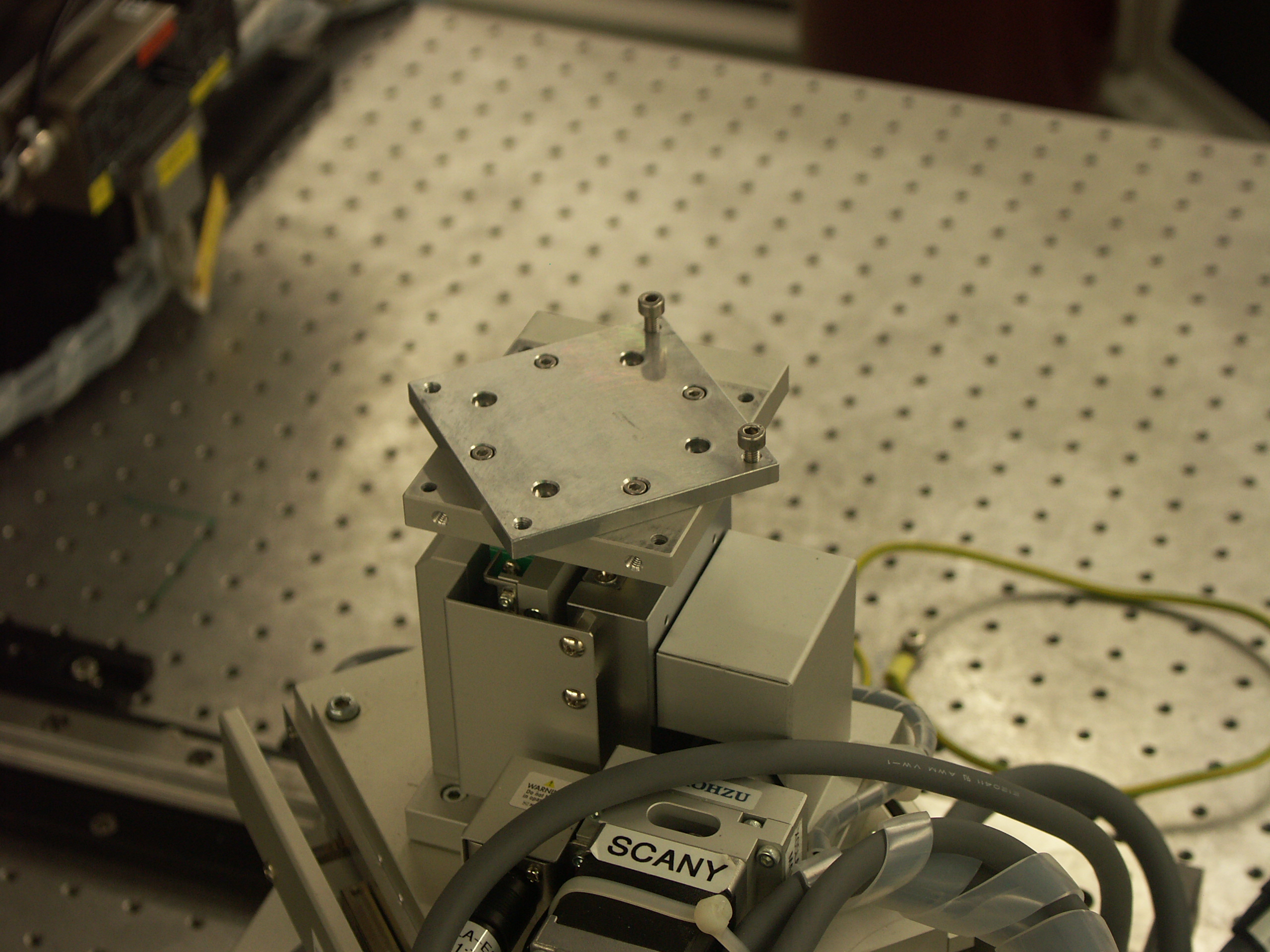

different 6mm thick adapters to mount top modules in 45-deg.

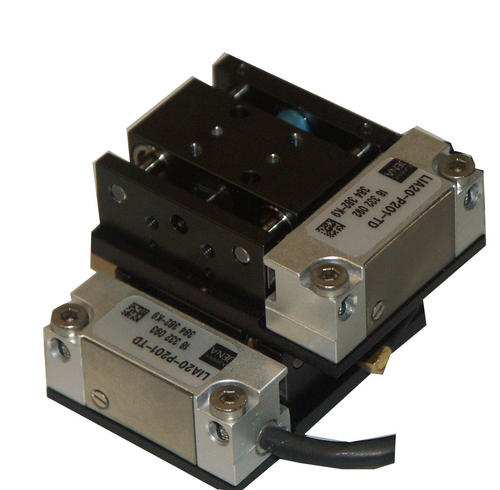

PP-30 XY-Table.jpg
small piezo driven XY-table. Can only carry much below 1kg load.

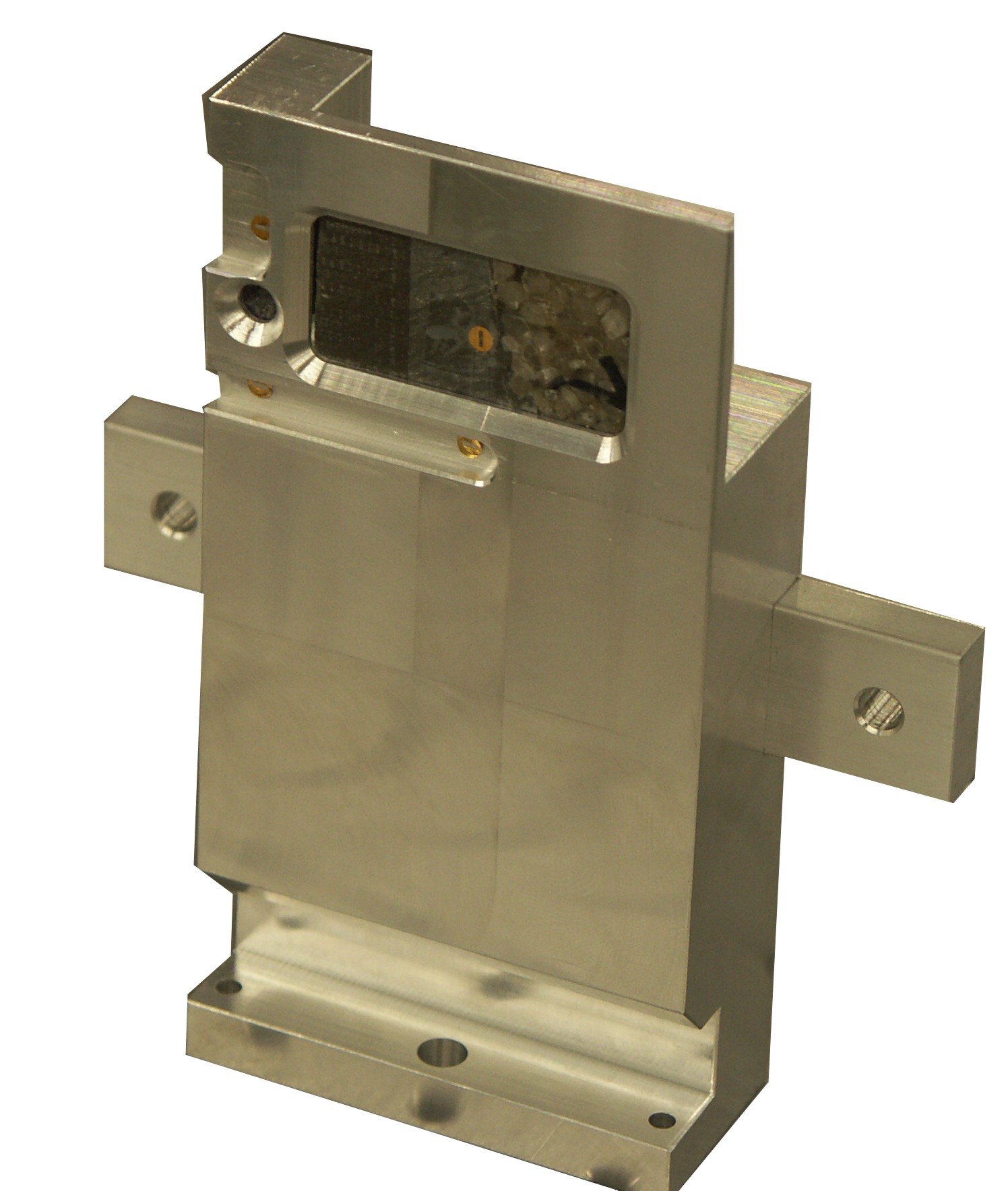

Sample Holder
Download eDrawings model (Windows only)
